EM500-01 BASIC-programmable Ethernet Module
Brief description

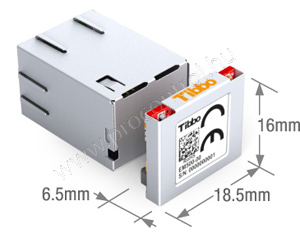

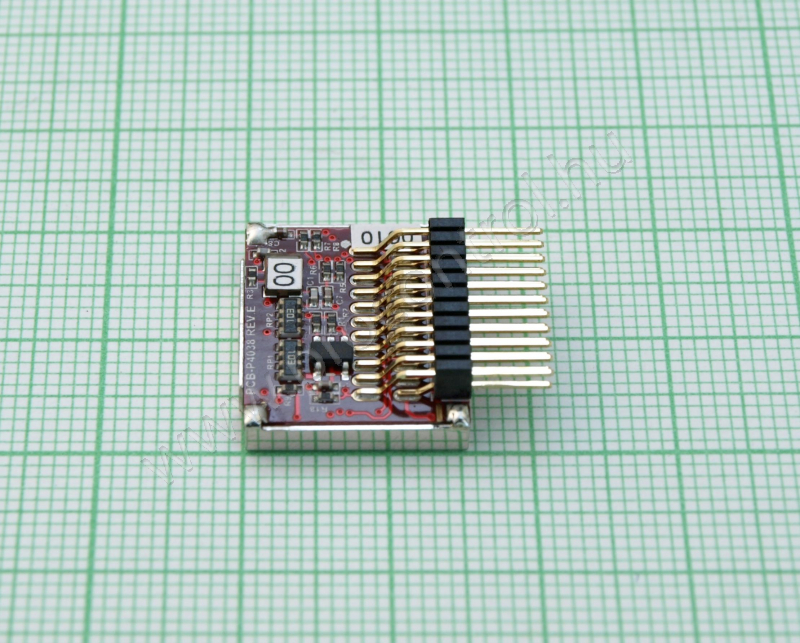

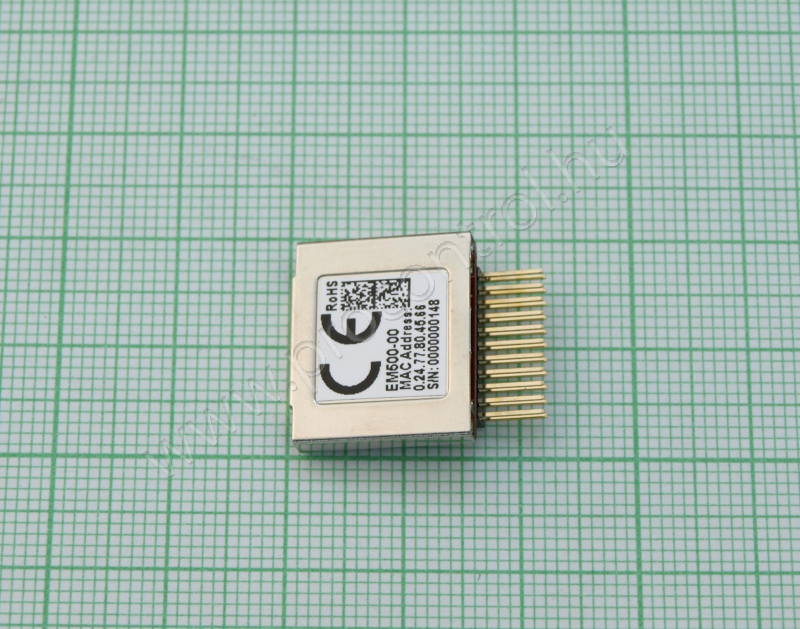

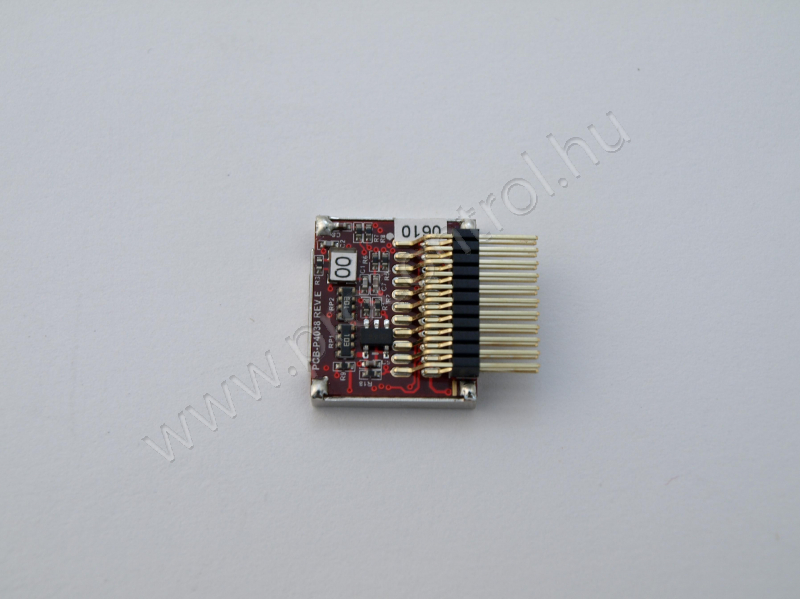

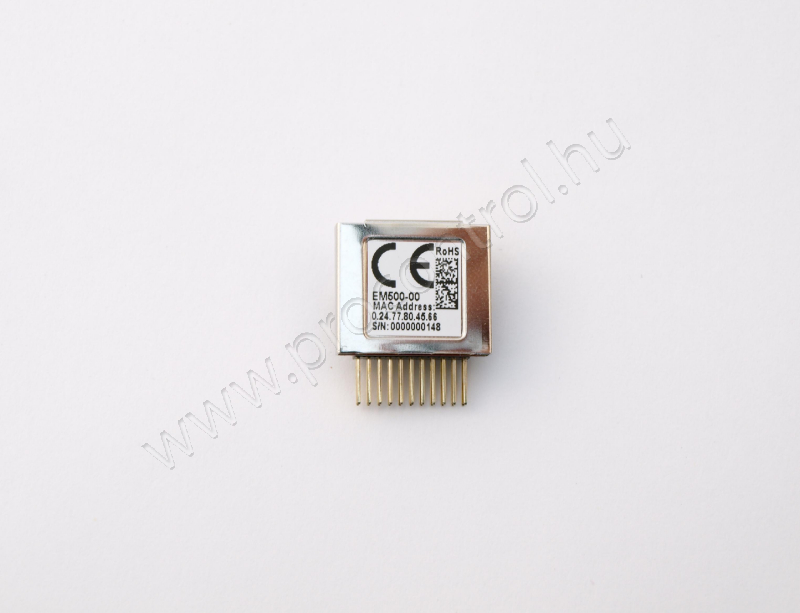

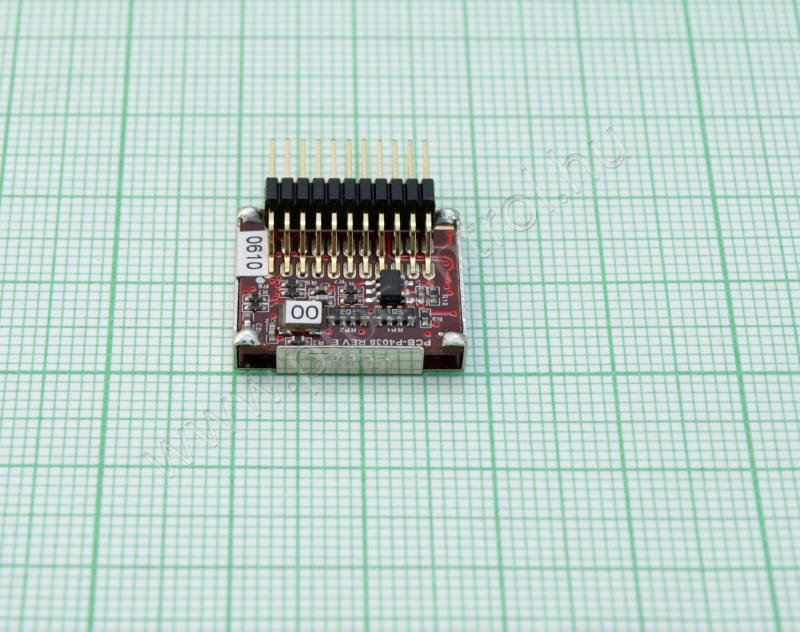

The EM500 is a miniature stand-alone BASIC-programmable embedded module, designed to be used in combination with a standard LED/magnetics RJ45 jack. The combined footprint of the EM500 and a standard jack is only 18.5x16.0x6.5mm
Technical attributes:
|
Size
|
18 mm x 18,5 mm x 6,5mm
|
|
Ethernet Interface
|
10/100BaseT
|
|
Number of I/O lines
|
8
|
|
Max. operating current
|
260 mA
|
|
Ethernet Magnetics
|
-
|
|
Ethernet connector (RJ45)
|
-
|
|
Average Power Consumption
|
260mA, 3,3V DC
|
|
Device temperature during operation
|
25 °C
|
|
Serial Port
|
1 x UART, Wiegand, clock/data
|
|
Flash memory
|
512 KB
|
|
EEPROM memory
|
256 B
|
|
Supported network protocols
|
UDP, TCP, ICMP (ping), and HTTP (Others -> Tibbo BASIC)
|
|
Nominal power supply voltage
|
3,3 V
|
|
Max operating relative humidity
|
90 %
|
|
Serial-over-IP
|
+
|
|
Operating temperature
|
-10°C - 70°C
|
Mentés
Technical Description
10/100BaseT Ethernet port
One serial port, 8 I/O lines
Dual-function LED control
Works with a standard RJ45 jack
6.5mm thick
Height and width of an RJ45 jack
|
| Product Code: |
305241 |
| Manufacturer: |
Tibbo
|
|
Pieces/Packages:
|
1 pcs
|
|
Minimum order quantity:
|
1 pcs
|
|
